Automatic Stretch Film Rewinding Machine
Automatic Stretch Film Rewinding Machine suit rewinding PE stretch film,PVC food cling film and PVC stretch film.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
color
red,blue,yellow
Automatic LLDPE cling film rewinding machine is a kind of multifunctional machine integrated with slitting and rewinding PVC cling wrap film film,LLDPE stretch film,PVC cling wrap film

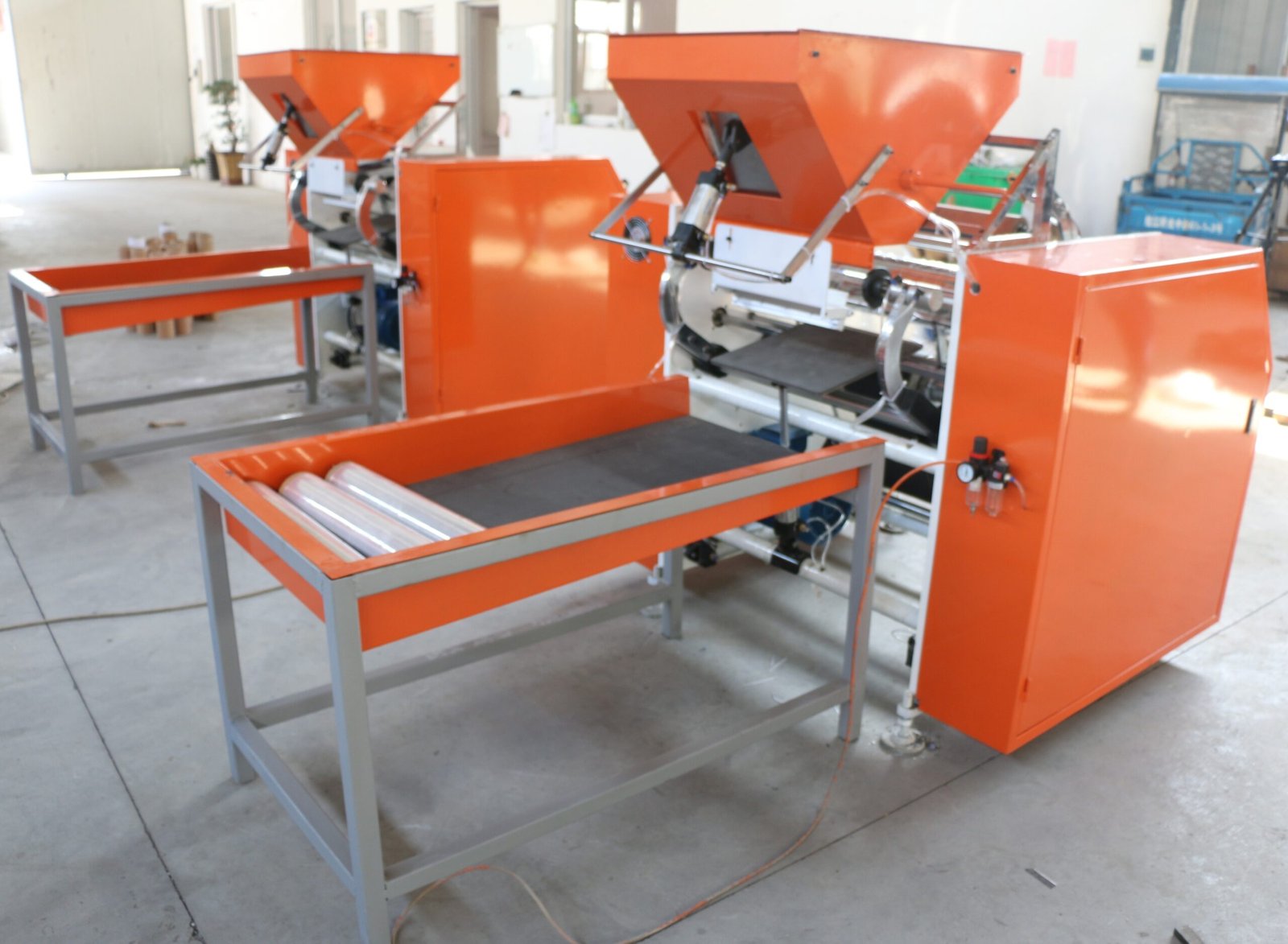

Automatic Stretch Film Rewinding Machine
Full automatic machine designed for the repid rewinding of stretch film from jumbo roll into small rolls.
The layout and operation make it user friendly and ideal for volume production. A skilled operator is not required.
Both for stretch & cling film rewinding.
Description:
This is developed model from Italy technology,it is very high speed,fully automatic rewinding, automatic shaft exchange,PLC Program,Touch screen operating,user friendly,less skilled operator request. It is ideal suit for rewinding the any stretch film,pallet stretch wrap film,PE food wrapping film,PVC food cling film etc.
Feature:
- Auto rewinding max. machine speed at 800 Mts/min
- High production rate and quick change over
- Fully automatic cycle with Programmable Logic Controller (PLC) control
- Paper core to be ordered from 1,2,3 inch.
- Free tension rewinding, No stretching occurs while rewinding
- LLDPEstretch film,PVC stretch film,LLDPE cling wrap film,PVC food wrap film.
- rewinding film from big roll to small roll
- inveter controlrewinding machine peed,save power,ECO and save cost.
- Film width 100mm-500mm
- Machine with meter accounter
- Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week
- Machine with simple design,easy operate
- Machine is economic design,suit for new beginer or starters
- Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
- Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.
- We are welcomed customers Customized machinesor OEM design.
Main Technical Parameters:
| Model | AKDRW-500 | AKDRW-600 | AKDRW-700 |
| Film width | 280-500mm | 280-600mm | 300-720mm |
| Rewinding width | 280-500mm | 280-600mm | 300-720mm |
| Max. diameter of Jumbo roll | 400mm | 400mm | 400mm |
| Max. diameter of Rewinded roll | 300mm | 300mm | 300mm |
| Rewinding speed | 900m/min | 900m/min | 900m/min |
| Winder exchanging | Automatic | ||
| Core size of unwinder | 3” | ||
| Core size of rewinder | 1-3” | ||
| Conveyor & stacker | Option device | ||
| Power Voltage | 220V,380V,440V | ||
| Machine Working time | 24 hours*7 | ||
| Material Core Diamater | 76mm(3 inch) | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
