High Speed 8 Colors Flexo Printing Machine
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
color
red,blue,yellow

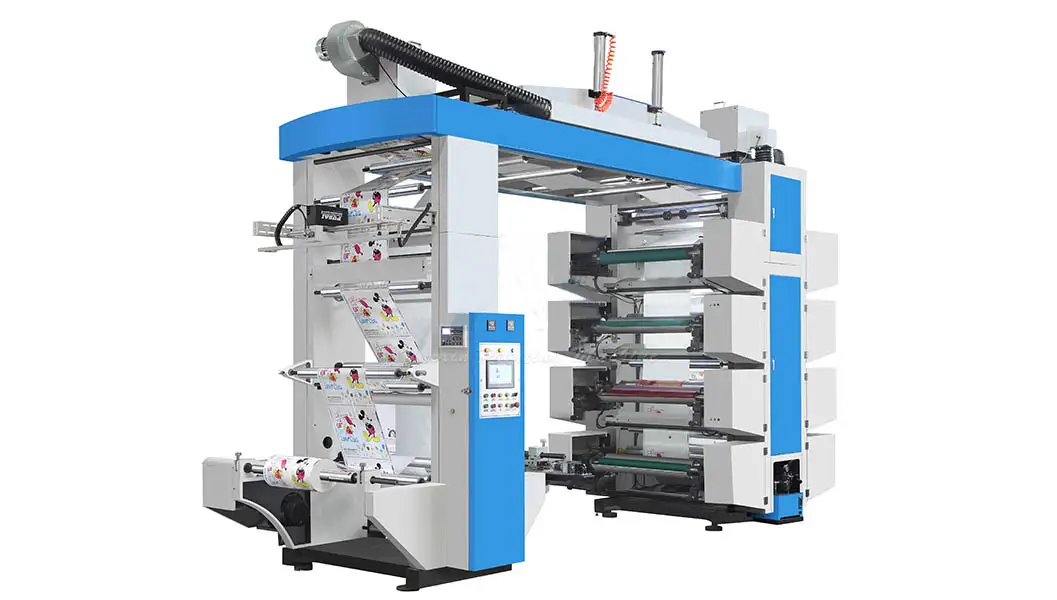

High Speed Eight Colors Flexo Printing Machine
Flexo printing machine adopt sensitization resin as flexible printing plate, It is suitable for printing such packing materials as polyethylene,polypropylene bag,cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, vest bag and clothes bag,etc.
Performance:
- Easy operation,flexible starting,accurate color register.
- the meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
- Pneumatic printing cylinder lift and lower, is will stir the printing ink automatically after lifting .
- the printing ink is spread by the anilox cylinder with even ink color.
- Reliable drying system coordinated with high-speed rotation, it will automatically break circuit whenthe machine stops.
- 360°continuous and adjustable longitudinal register device.
- The frequency control of motor speed adapts to different printing speeds.
- There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
| YT-A8600 | YT-A8800 | YT-A81000 | YT-A81200 | |
| Max.material width | 600mm | 800mm | 1000mm | 1200mm |
| Max.printing width | 560mm | 760mm | 960mm | 1160mm |
| Printing colors | 8 colors (8+0,7+1,6+2,5+3,4+4) | |||
| Printing length | 300-1000mm | |||
| Machine speed | 150m/min | |||
| Printing speed | 100m/min (120m/min with optional:chamber doctor blade) | |||
| Suitable Material | PAPER∶15~300g/m²、 NONWOVEN∶15-120G、PC∶10-120μm、OPP∶10-100μm、BOPP∶10-100μm、PE∶15-150μm、NY∶10-120μm、 PET∶10-100μm、CPP∶10-100μm | |||
| Adjusting of register | Electric motor control （vertical and horizontal） | |||
| Material of Plate | Resin | |||
| Constitution of Printing | Ceramic Anilox roller 8pcs、single doctor blade 8pcs、printing Cylinder for printing length 400mm、 Camera & PLC touch screen control
|
|||
| Optional device :chamber doctor blade; | ||||
| Working Principle | synchronous belt driving | |||
| Printing precision | +/-0.15mm | |||
| Thickness of Plate (including the glue) | 1.7mm (please note us for different thickness) | |||
| Machine Voltage | 380V 50/60HZ 3PH | |||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
