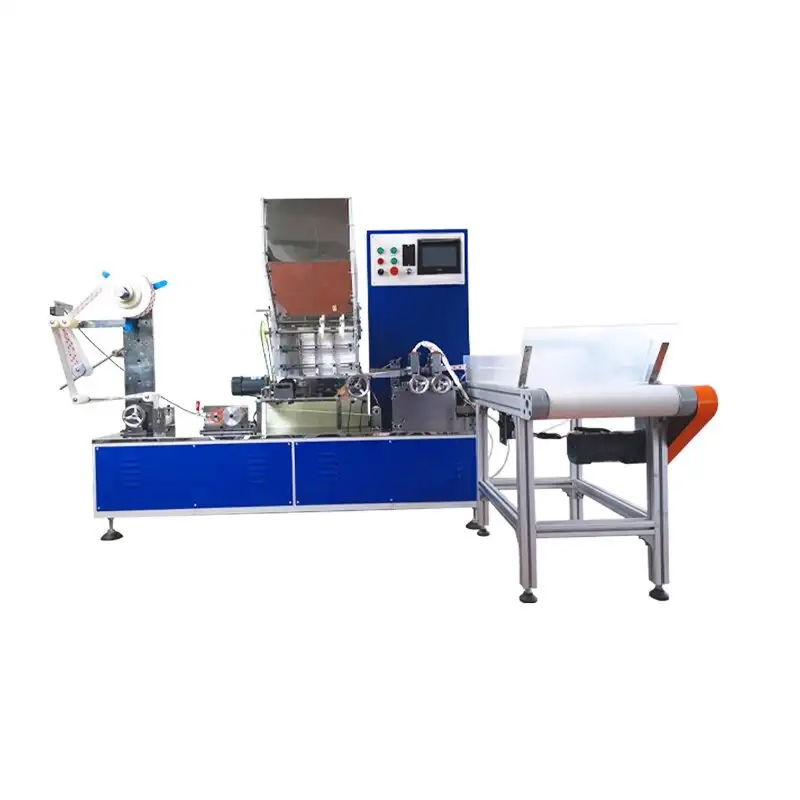

Single Straw Automatic Packing Machine
Single Straw Automatic Packing Machine pack drinking straw with paper or BOPP.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
Single Straw Automatic Packing Machine:
TECHNICAL CHARACTERISTICS:
1. Packing, filling and packing individual drinking straws, one cut at a time.
2. Automatic product counting and alarm.
3. The packaging length can be adjusted freely by calibration, paper and BOPP film (or paper/film with logo).
4. You can pack 150~260mm length straws in the same diameter without changing any spare parts. You can pack many straws of different diameters by changing some spare parts.
5.Use three sets of servo motor system to drive, PLC control, touch screen can set any data to package different length straw.
6. High speed color calibration system. precise position with pattern.
7. Temperature module system to control the heating temperature.
8. Stainless steel work table.
| Item | KD-31D |
| Speed | 400-500pcs/min |
| main cutting motor | SERVOMOTORES 0.8KW |
| Main wrap motor | SERVOMOTORES 0.4KW |
| Main pushing motor | SERVOMOTORES 0.4KW |
| Hopper power | 90w |
| Heating power | 2*200w (use BOPP) |
| Packing material | Papel, BOPP film |
| Width of material | Papel: 25-33 mm plastic film: 25-60 mm |
| Straw diamter | 4mm—12mm |
| Straw length | 150-260mm |
| weight | 450kgs |
| Machine size | 1250mm X 1800mm |
| Automatic counter | 1 piece |
| Conveyer belt | 1 piece |
| Touch screen | 1 piece |
| PLC | 1 piece |
| Temperature control module | 1 piece |
| Photocell system | 1 piece |
