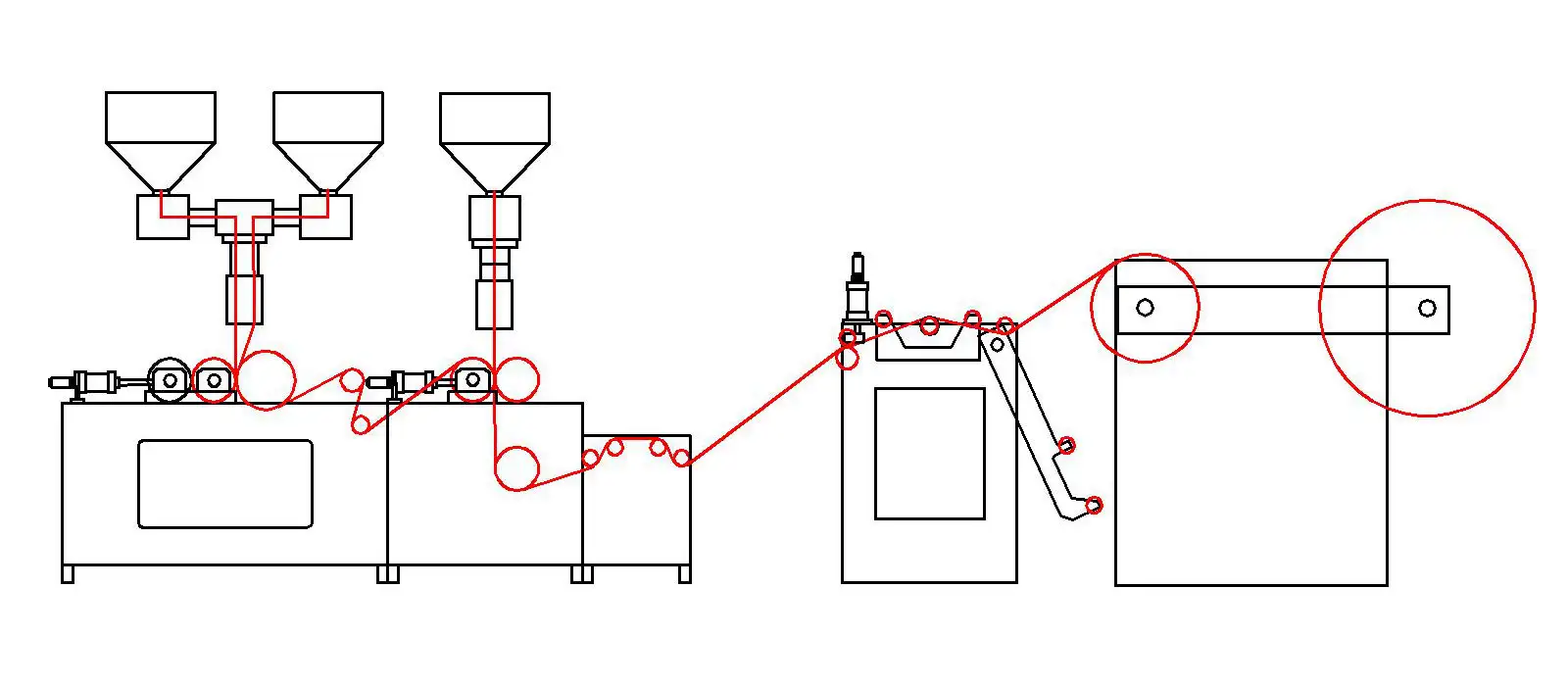

Three Layers Air Bubble Film Machine

Three Layers Air Bubble Film Machine

The Three Layers Air Bubble Film Machine, commonly referred to as a plastic bubble film machine, is engineered for the production of air bubble film. This machinery primarily employs Low Density Polyethylene (LDPE) or recycled LDPE as its main raw material. It is available in various widths, such as 1200mm, 1500mm, 2000mm, 2500mm, and 3000mm, and is capable of generating bubble film with two separate layers. The machine accommodates multiple power configurations, including 220V, 380V, 440V, or 480V, and offers a selection of bubble film colors like red, blue, and yellow. A notable feature of the machine is its user-friendly design, which facilitates ease of operation.

Three Layers Air Bubble Film MachineTechnical Variables:

Model	KDPEG-1000	KDFPG-1200	KDPEG-1500
Raw Material	LDPE,recycle material,masterbatch and additives material
Screw Diameter	φ65mm+φ50mm	φ75mm+φ60mm	φ90mm+φ70mm
Bubble film Max. width	600mm	1200mm	1500mm
Bubble Film Layer	3 layers,4 layers,5 layers
Bubble Film Color	Transparent,Black,Red,White,blue…bag color changed by masterbatch
Output	55kg/h	70kg/h	90kg/h
Total power	75kw	82kw	98kw
L/D Ratio Of Screw	28：1	28：1	28：1
Water Consumption	0.5m3/h	0.5m3/h	0.5m3/h
Machine Weight	3.5	4.5	5
Power Voltage	220V,380V,440V(Customized based on request (For example: USA 480V 60Hz, Sudan 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Sudan 415V 50Hz…)
Air Shaft Diameter	without paper core ,58mm,76mm
Machine Working Time	24 hours*7
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas

two layers air bubble film machines

air bubble wrap film bubble bag

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
